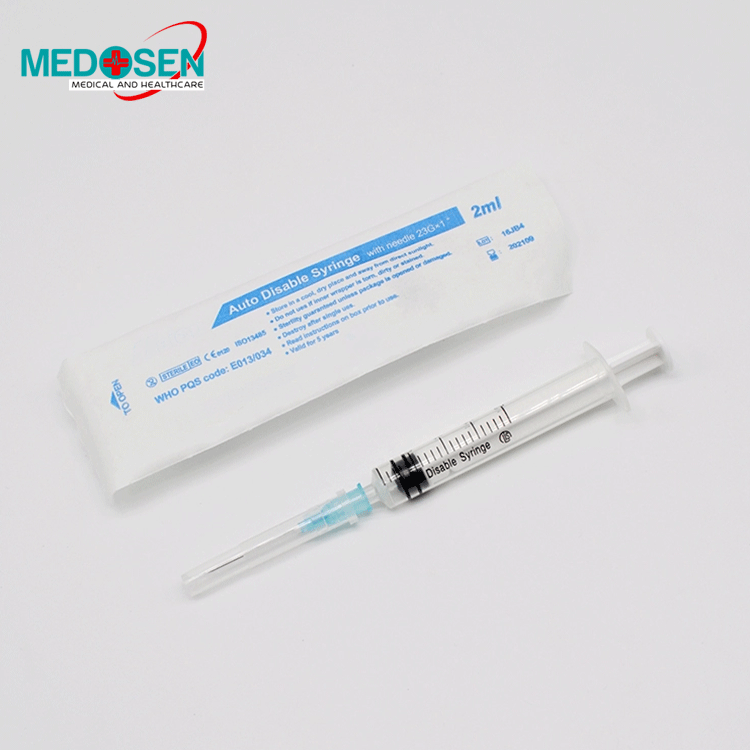

Auto Disable Syringes

Auto Disable Syringes


Brief Introduce

Auto Disable Syringes is one type of safety syringe, have two model: Front Lock or Back Lock.
On the basis of traditional syringes, it adds auto-destroy mechanism. After predetermined medicine liquid injected auto-mechanism effects, It can be auto-destroyed automatically after single use, and can't use again. Special structure, simple and convenient use.



Feature

1.  After finishing injection, the plunger will be pierced by spike in the bottom of barrel, then plunger is leakage, user can NOT suck medicament again in order to prevent from syringe reuse, cross infection and hazardous sharps waste;
2. Single handed operation and activation;
3. No change injection technique;

4. Certificated by CE/ISO/GMP;

5. Syringes meets the ISO 7886-4 standard requirements, and also meets the MDD 93/42 EEC requirements;

6. Sterilized by EO gas, non-toxic, non-pyrogenic, single use only.


Warnings

1. Do not use the syringe if the device package is damaged.

2. Dispose the device after use. The device is meant for one-time use only.

3. The storage areas need to be well ventilated and free from corrosive gases.

4. It should be well equipped with fire and rat's prevention, moisture and pest control facilities.

5. Do not use if it is over its expiration date.

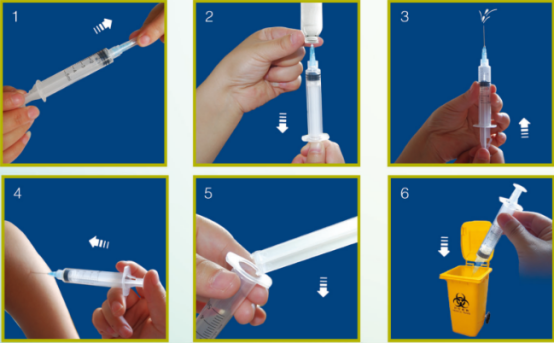

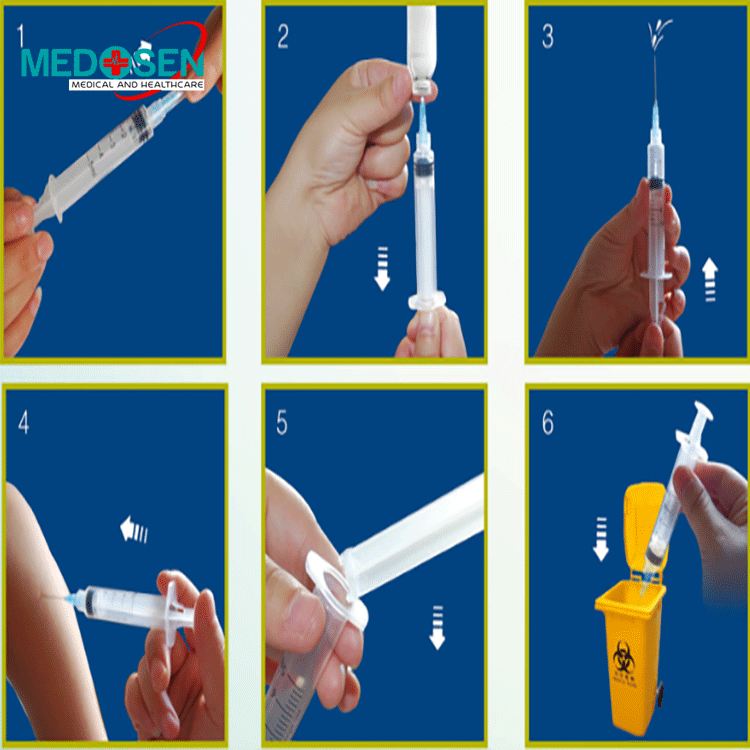

Operating Steps


Description

Product name

Auto Disable Syringes



Material

Barrel & Plunger: Medical grade PP

Needle: Stainless steel

Piston: Latex or Latex Free

Volume

0.5ml 1ml 2.5ml 3ml 5ml 10ml

Luer type

Luer lock or luer slip

Needle type

Fixed or put aside

Needle gauge

Without needle, or with 15G~31G needle

Application

Medical

Feature

Disposable

Certification

CE, ISO, GMP

Plunger color

Transparent , white , colored

Barrel

High Transparent

Graduation Line

Indelible ink

Lubricant

Medical Grade silicon oil



Package

Individual package:Blister/PE packing(Hard blister is available)

Secondary package: Box

Outer package: Carton

Shelf time

3 years

Sterile

Sterile by EO gas , non-toxic , non-pyrogen

Sample

Free

OEM

Available


Needle size

Size

Color Code

Regular Needle Length

O. D.

(mm)

Gauge

12mm

16mm

19mm

25mm

32mm

38mm

1/2"

5/8"

3/4"

1"

1  ¼"

 1 ½"

0.3

30G

Yellow






0.33

29G

Red






0.36

28G

Blue-green






0.4

27G

Grey






0.45

26G

Brown






0.5

25G

Orange




0.55

24G

Purple





0.6

23G

Blue




0.7

22G

Black




0.8

21G

Green




0.9

20G

Yellow






1.1

19G

Creamy






1.2

18G

Pink





1.6

16G

White





1.8

15G

Dark blue
