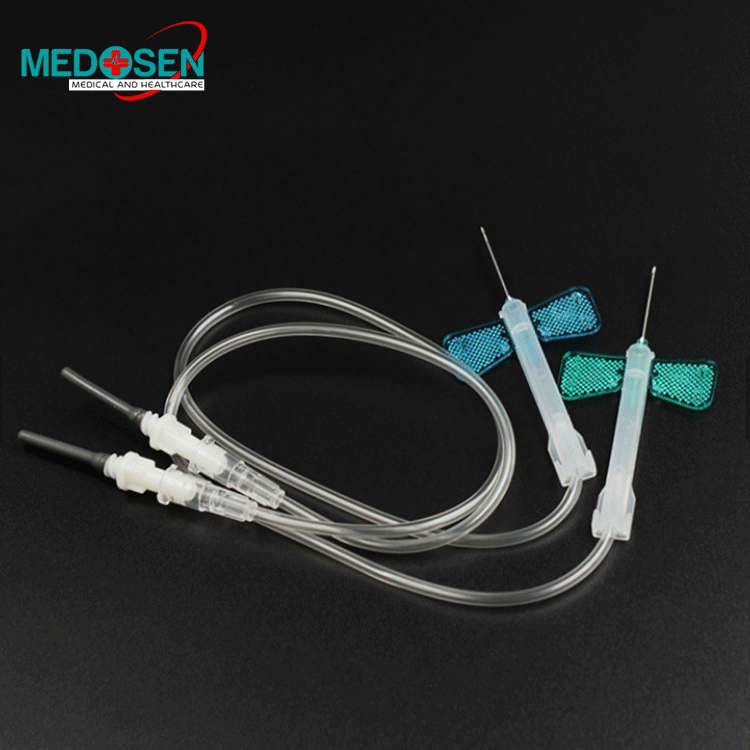

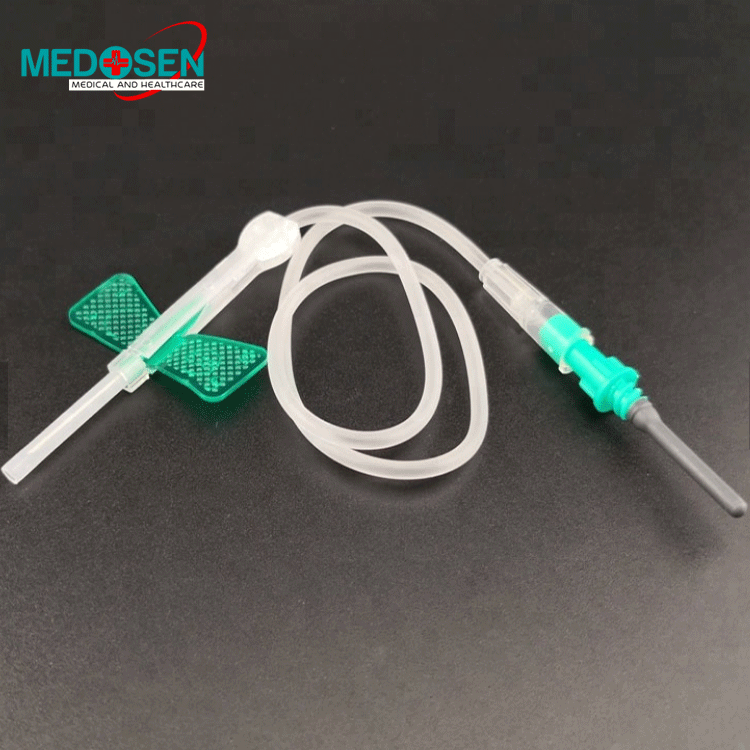

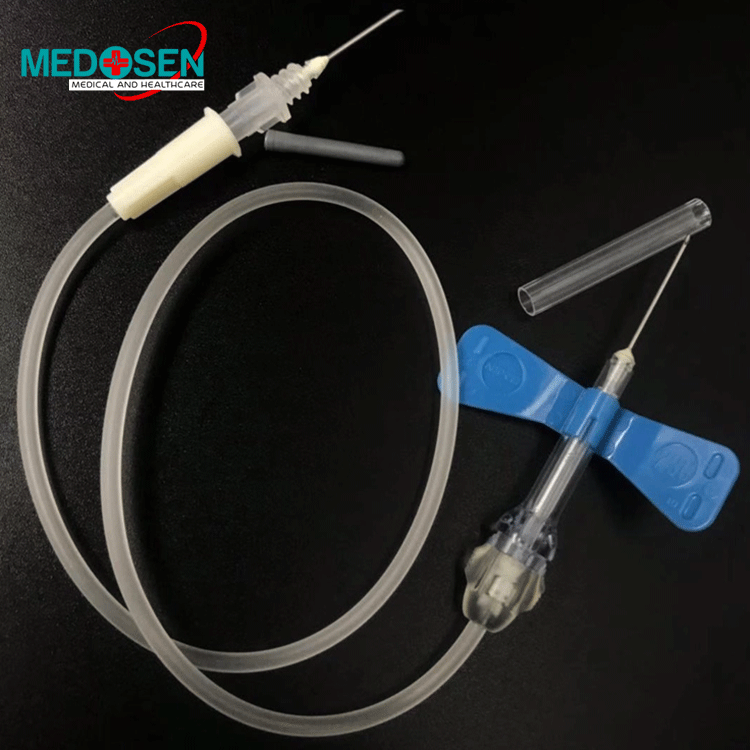

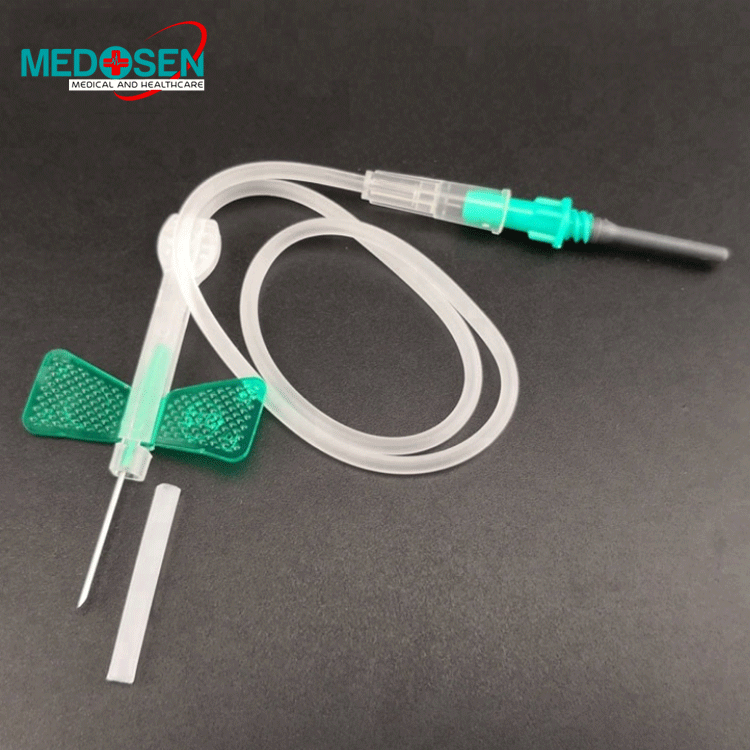

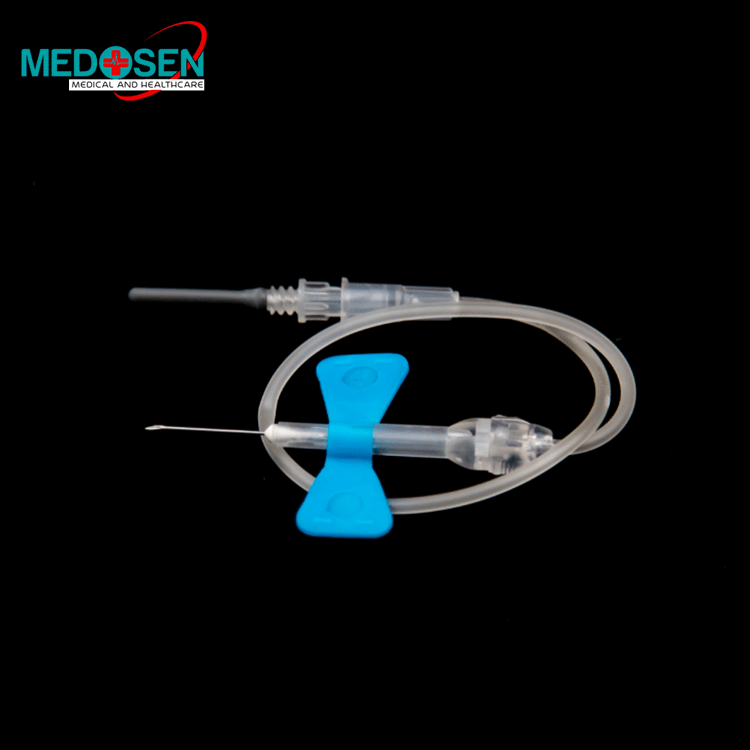

Safety Butterfly Blood Collection Needle

Brief Introduce

The safety blood collection needle - Butterfly type, including safety double wings, kink resistance tube and multi-sample needle, which is used for vein blood collection and/or the short-term infusion of intravenous fluids.

Through pushing the sheath or softly pulling the tube, thus to make the needle retracts into the protective sheath.

Feature

1) Perfect bevel geometry and ultra sharpness ensure minimum trauma and puncture pain;

2) Ultra thin wall ensures painless insertion and superior blood flow;

3) Safety cap prevents accidental puncture, and the transparent appearance provides a quick blood collection feedback;

4) Soft wings with secure grip, easier for grasp and being attached to patients’ body;

5) DEHP FREE PVC tube.

Warnings

1. Do not use the device if the device package is damaged.

2. Discard the device after use. The device is meant for one-time use only.

3. The storage areas need to be well ventilated and free from corrosive gases.

4. It should be well equipped with fire and rat's prevention, moisture and pest control facilities and do not store at extreme temperature.

5. Do not use if it is over its expiration date.

Application Methods:

Step1: Open the package to take out the Safety Blood Collection Needle;

Step2: Tie the part for injecting, in order for easier injecting;

Step3: Take off the needle cap, puncturing to the venous and injecting to human body;

Step4: After puncturing, take off the elastic tie;

Step5: Insert the tube to collect the blood sample;

Step6: After blood sampling, take away the needle from the patient’s body, and retract the needle into the safety cap;

5a: Activate the safety mechanism by holding the set and with the same hand sliding the safety cover forward over the needle;

5b: With one hand gripping the set, retract the needle into the safety cover by pulling the tube back with another hand;

Step6: Throw the contaminated device into the sharps container.
