Safety Syringes With Protective Caps

Safety Syringes With Protective Caps


Brief Introduce

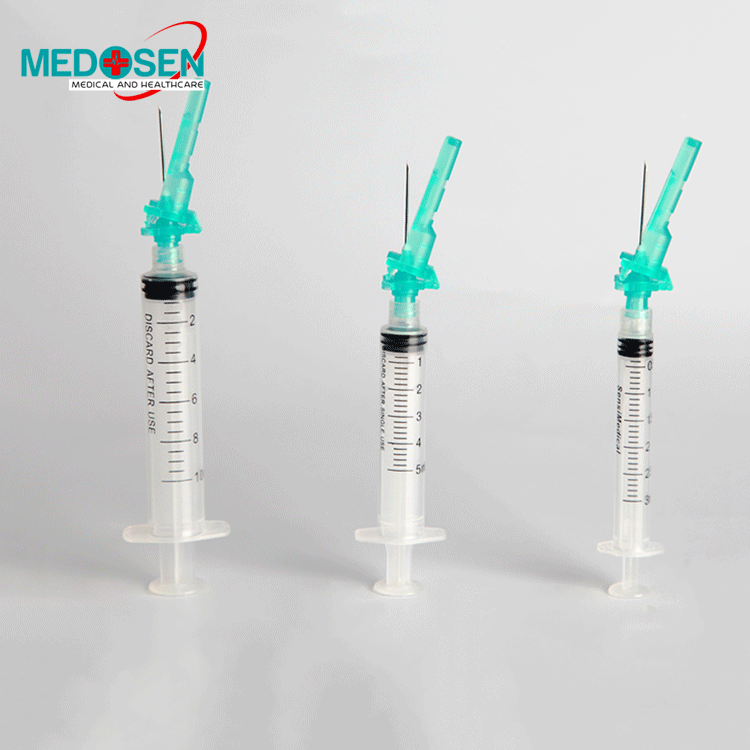

Safety Syringes With Protective Caps is developed on the basis of auto disable syringes with a protective cap assembled on the syringes, which covers the needle to protect medical staff from needle stick injuries. Alternatively disposable syringes with luer lock or luer slip syringes all are matched with this improved protective caps. Special structure, simple and convenient use.


Feature

1. Needle stick prevention syringes(safety syringe with cap). apart from having a mechanism to avoid reuse, also protect healthcare workers and patients from needle related injuries and infections. The syringes contain a shield, made of medical grad PP, which covers the needle creating a protective cap.

2. The cap can be bend to 180°it is easy for nurses to use.

3. Special designed lock in the protective cap provide complete protect for both patients and nurses after use, getting rid of unsafe risk.

4. Competitive price advantage over other safety technologies.

5. Device is nontoxic, non- pyrogenic and latex-free.

6. Certified by CE, ISO,GMP.

7. Sharp needle could reduce patient pain.

8. This product is bio- compatible and sterilized by using a validated EO gas sterilization process.

9. Syringes meet the ISO 7886-4 Standard requirements, except the Luer- connection, and also meet the MDD 93/42 EEC requirements.


Warnings

1. Do not use the syringe if the device package is damaged.

2. Dispose the device after use. The device is meant for one-time use only.

3. The storage areas need to be well ventilated and free from corrosive gases.

4. It should be well equipped with fire and rat's prevention, moisture and pest control facilities.

5. Do not use if it is over its expiration date.

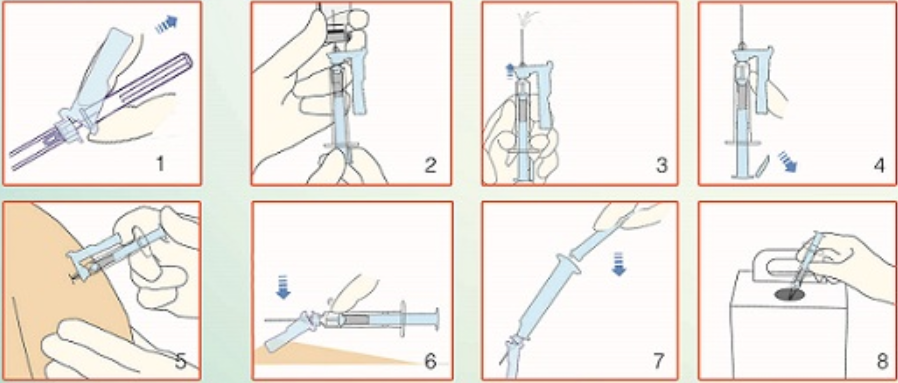

Operating Steps



1. Take off the needle cover

2. Draw the medication from the vial

3. Expel the air(softly push the plunger until exhaust the air in the barrel ,don't push the plunger into the end of the barrel in this step)

4. Tear off the protective sheet from the plunger

5. Inject the medication(push plunger into "0'line)

6. Cover the needle using protective cap(Don't touch the needle by hand directly ,needle can be locked by hitting the protective cap against any flat surface )

7. Break off the plunger at break point

8. Throw them into sharps container




Description

Product name

Safety Syringes With Protective Caps



Material

Barrel & Plunger: Medical grade PP

Needle: Stainless steel

Piston: Latex or Latex Free

Volume

1ml 2.5ml 3ml 5ml 10ml 20ml

Luer type

Luer lock or luer slip

Needle type

Safety hypodermic needle

Needle gauge

Without needle, or with 15G~31G needle

Application

Medical

Feature

Disposable

Certification

CE, ISO, GMP

Plunger color

Transparent , white , colored

Barrel

High Transparent

Graduation Line

Indelible ink

Lubricant

Medical Grade silicon oil



Package

Individual package:Blister/PE packing(Hard blister is available)

Secondary package: Box

Outer package: Carton

Shelf time

3 years

Sterile

Sterile by EO gas , non-toxic , non-pyrogen

Sample

Free

OEM

Available


Needle size

Size

Color Code

Regular Needle Length

O. D.

(mm)

Gauge

12mm

16mm

19mm

25mm

32mm

38mm

1/2"

5/8"

3/4"

1"

1  ¼"

 1 ½"

0.3

30G

Yellow






0.33

29G

Red






0.36

28G

Blue-green






0.4

27G

Grey






0.45

26G

Brown






0.5

25G

Orange




0.55

24G

Purple





0.6

23G

Blue




0.7

22G

Black




0.8

21G

Green




0.9

20G

Yellow






1.1

19G

Creamy






1.2

18G

Pink





1.6

16G

White





1.8

15G

Dark blue
