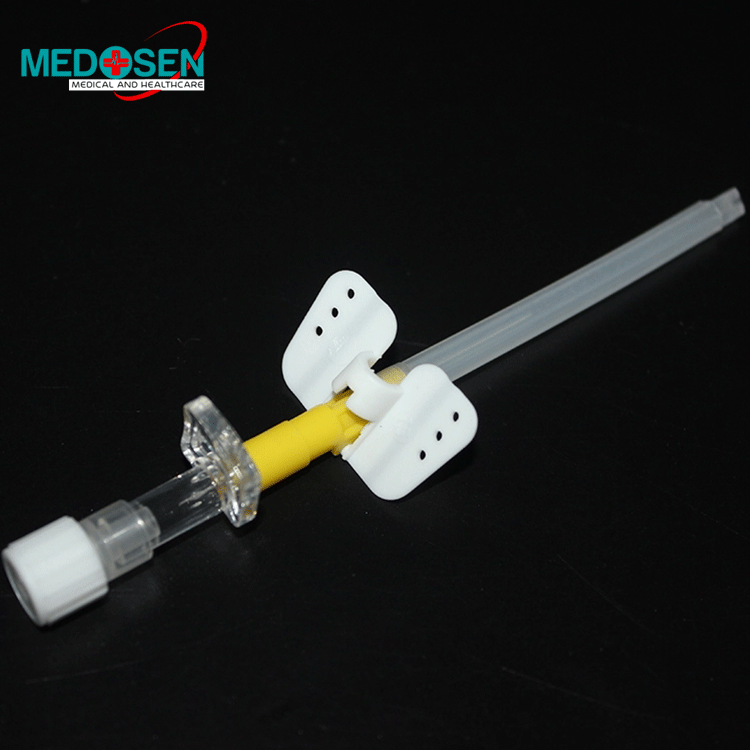

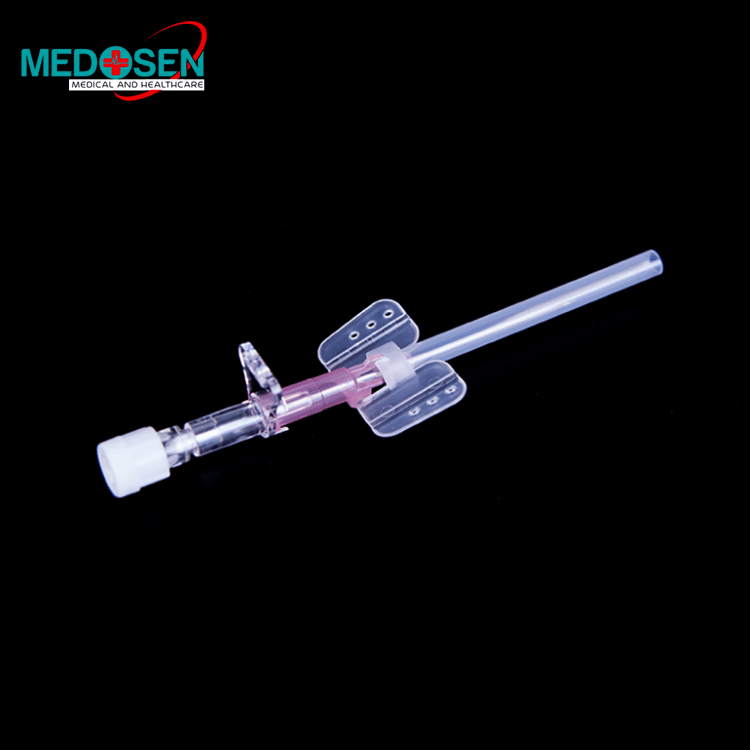

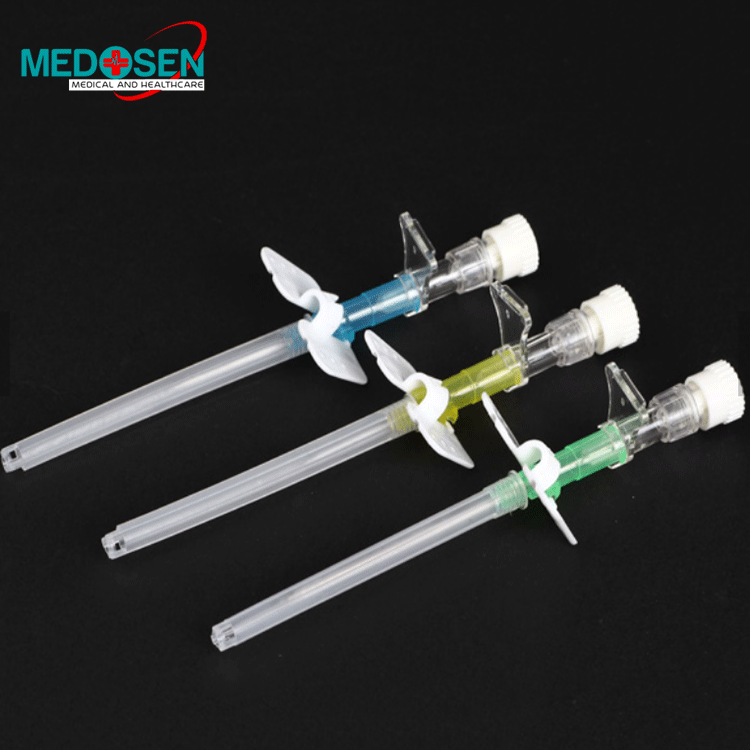

IV Catheter With Wings Type
Brief Introduce
IV Cannula is placed inside a vein to provide venous access, in order to reinfuse next time after one infusion. Venous access allows sampling of blood, as well as administration of fluids, medications. With soft cannula, intravenous indwelling needle is operated easily, it can generally indwell for 3 days, reduce the patients’ suffering due to penetrating repeatedly, protect blood vessel and reduce the probability of phlebitis.
Feature
1) Integrated enclosed design to prevent cross-infection of blood effectively;
2) Color-coded easing cap allows for easier identification of cannula size;
3) Advanced tip design, with double-bevelling to ensure easy vein puncture with minimum trauma;
4) Kink resistant and specially tapered catheter;
5) Transparent flash back chamber for easy visualization of blood to confirm venipuncture.
Warnings
1. Do not use the device if the device package is damaged.
2. Dispose the device after use. The device is meant for one-time use only.
3. The storage areas need to be well ventilated and free from corrosive gases.
4. It should be well equipped with fire and rat's prevention, moisture and pest control facilities.
5. Do not use if it is over its expiration date.
Description
Product name | IV Catheter With Anti-Flow Back Type (Y Type) |
Material | Stainless steel needle |
GPPS needle hub | |
FEP catheter | |
PP catheter hub | |
PP protective sheath | |
PP vent fitting | |

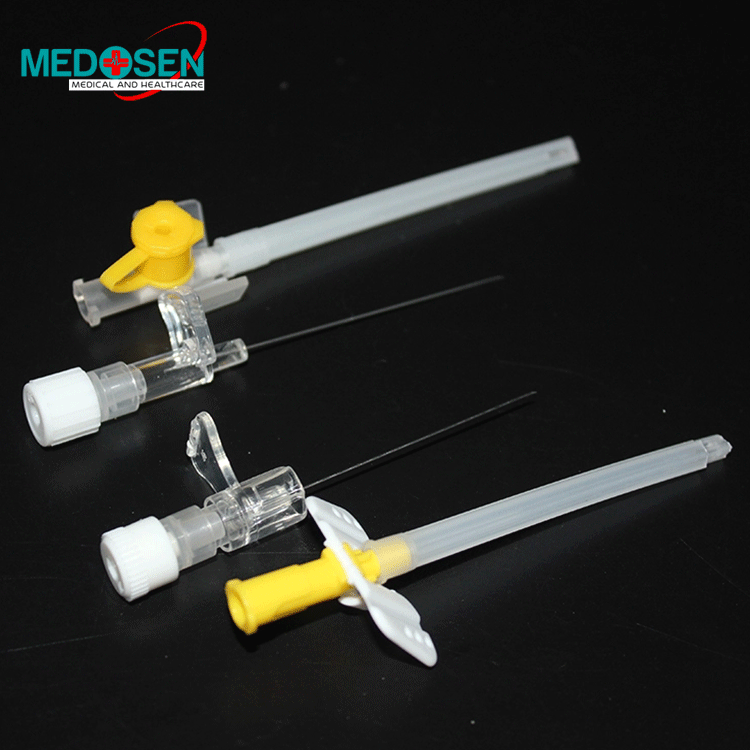

Options available | With Pen-like type |
With Injection valve type | |
with wings type | |
With "Y" type | |
Safety various type | |
Size | 14G/16G/18G/20G/22G/24G/26G |
Flow rate | 220ml/140ml/75ml/54ml/25ml/15ml/19ml according the gauge |

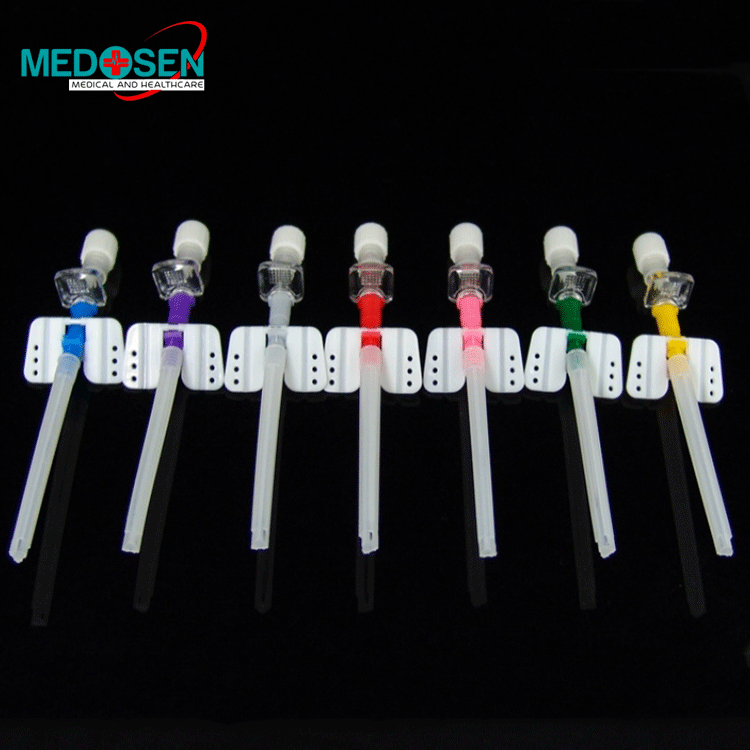

Color | Red/gray/green/pink/blue/yellow/purple |
Tube length | 100mm/125mm |
Feature | Disposable use of venous transfusion, hypodermic injection clinic |
Certification | CE, ISO |

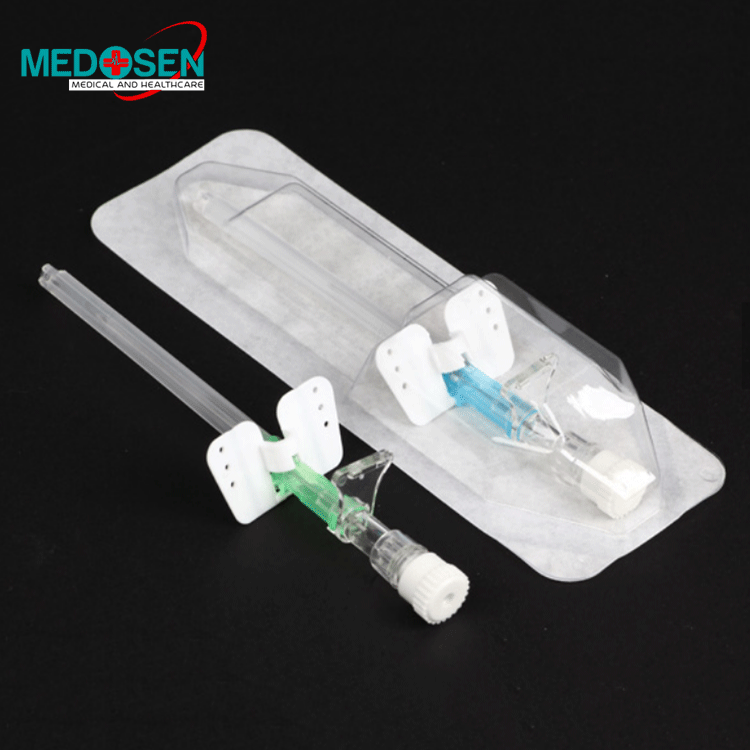

Package | Hard blister packing or soft blister packing |
Shelf time | 3 years |
Sterile | Sterile by EO gas , non-toxic , non-pyrogen |
Sample | Free |
OEM | Available |
I.V.Cannula: ( Injection valve type, Pen type, Wings type)
Gauge | Product Specification O.D.*L | Flow | Color Code | Package |
14G | (2.00mmx51mm) | ≥220mL/min | red |
Individual pack 50pcs/box 1000pcs/carton |
16G | (1.60mmx51mm) | ≥140mL/min | Medium Gray | |
18G | (1.20mmx45mm) | ≥75mL/min | Dark Green | |
20G | (1.00mmx33mm) | ≥54mL/min | Pink | |
22G | (0.80mmx25mm) | ≥25mL/min | Dark Blue | |
24G | (0.70mmx19mm) | ≥15mL/min | Yellow | |
26G | (0.65mmx19mm) | ≥19mL/min | Purple |
I.V.Cannula: ( Pen-like type with extended deep vein catheter)
Gauge | Product Specification O.D.*L | Flow | Color Code | Package |
14GA | (1.20mm*97mm) | ≥220mL/min | Red |
Individual pack 50pcs/box 1000pcs/carton |
16GA | (1.20mm*97mm) | ≥140mL/min | Gray | |
18GA | (1.20mm*97mm) | ≥75mL/min | Green |
I.V.Cannula: Y Type
Gauge | Product Specification | Flow | Color Code | Package |
18G | 1.16"(1.3mmx30mm) | 80mL/min | Dark Green |
Individual pack 50pcs/box 1000pcs/carton |
20G | 1.16"(1.1mmx30mm) | 50mL/min | Pink | |
22G | 1.00"(0.9mmx25mm) | 33mL/min | Dark Blue | |
24G | 0.75"(0.7mmx19mm) | 24mL/min | Yellow | |
26G | 0.63"(0.6mmx16mm) | 12mL/min | Purple |
