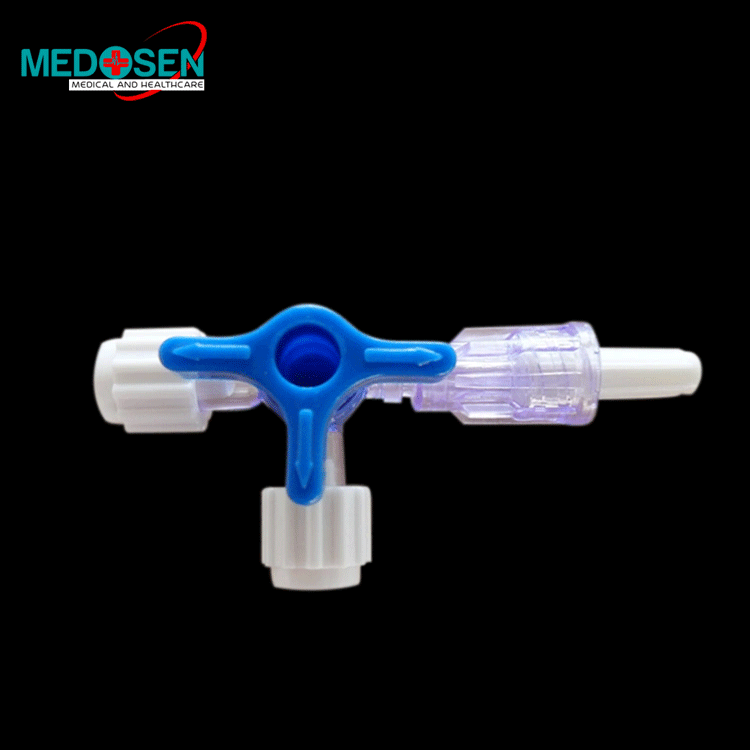

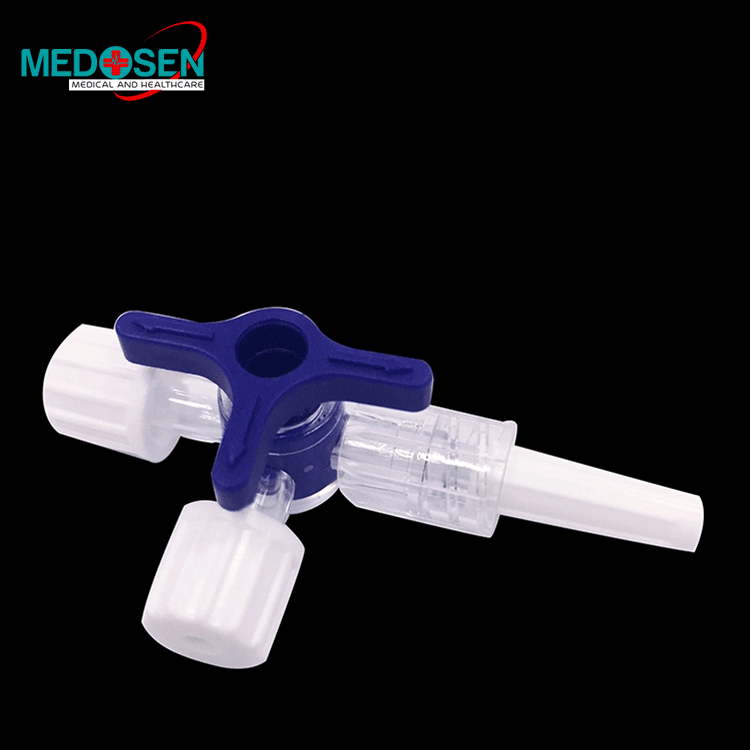

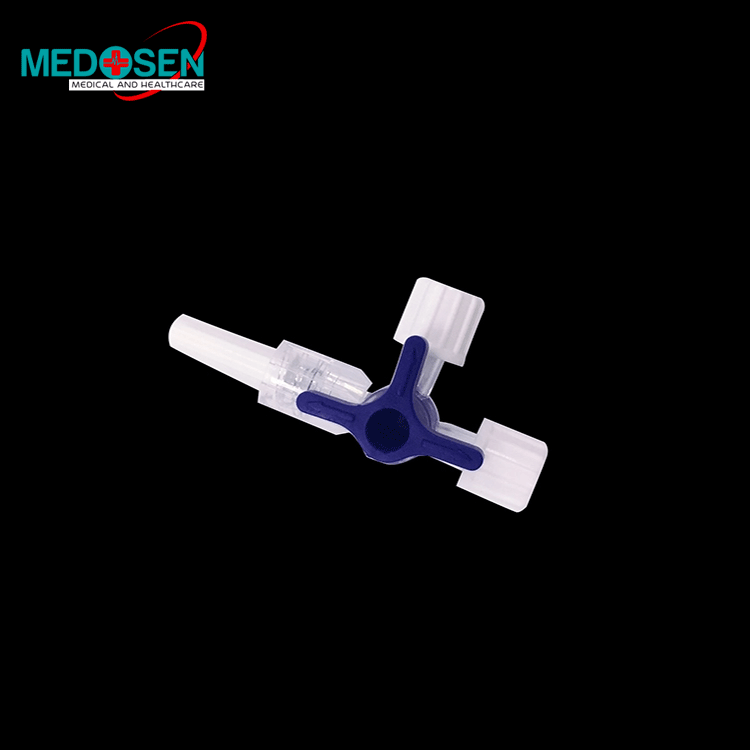

Three-way Stopcock

Brief Introduce

Three-Way Stopcock is mainly used for regulating the flowing rate of infusing fluids when clinical infusion. It is designed for use with most common parenteral fluids.

Feature

1) Smooth and jerk free operation with arrow marks to indicate flow of fluids;

2) Simple operation, with 360° rotation valve;

3) Transparent product increases safety performance, and easy for observation;

4) Lipid resistant is optional, fully transparent and with minimal dead space;

5) Universal 6% taper as per ISO594, compatible with any standard product;

6) With or without extension is optional;

7) Only for single use, decreasing cross-inflection risks;

Warnings

1. Do not use the device if the device package is damaged.

2. Dispose the device after use. The device is meant for one-time use only.

3. The storage areas need to be well ventilated and free from corrosive gases.

4. It should be well equipped with fire and rat's prevention, moisture and pest control facilities.

5. Do not use if it is over its expiration date.

Description

Product name	Three-Way Stopcock
Material	Body(PC), Plug(PE); Screw cap(ABS)
Options available	Two /Three Way/With or without extension tube
Tube Length	10cm/50cm or customized
Extension Tube	I. D.: 3.0 mm and O. D.: 4.1 mm

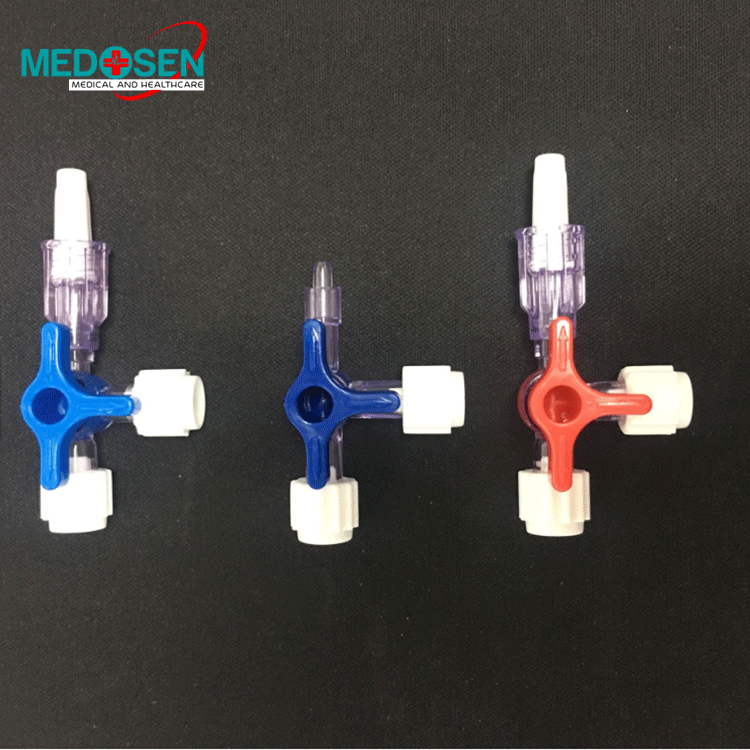

Color	Blue/Red/White or customized
Specification	1. Two female fully threaded luer lock ports; 2. Extension tube with male luer fitting with rotating security lock; 3. 360°rotation valve ,leakproof at 600kpa for 30 seconds ; 4. Flow rate in excess of 250ml/min; 5. Medium pressure (8bar-116psi); 6. Transparent base and legs; 7. Flow indicator on tap position of handle indicating open ports; 8. No deadspace in base of stopcock; 9. Minimal deadspace in ports.
Feature	Universal 6% taper as per ISO594, compatible with any standard product
Certification	CE, ISO

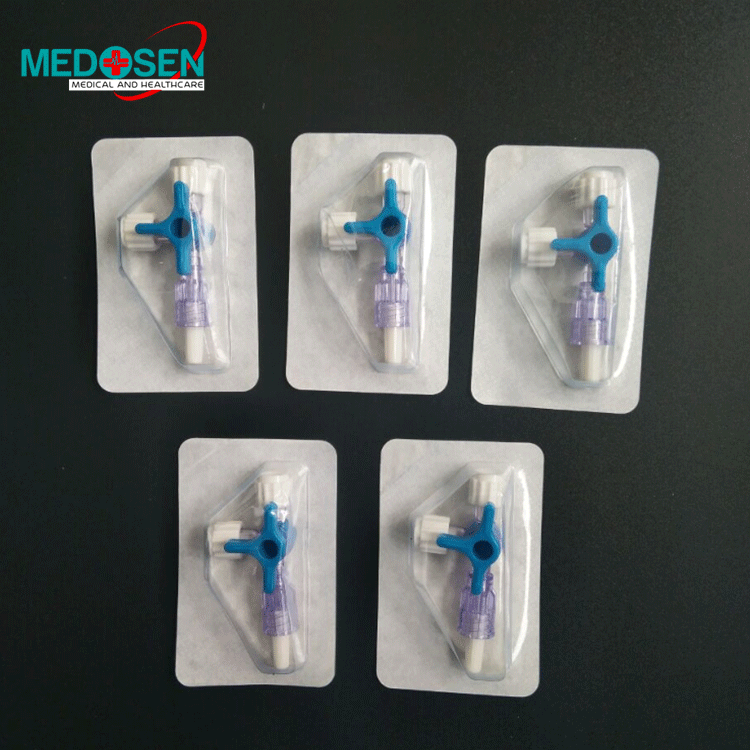

Package	Individual package:Blister/PE packing
Shelf time	3 years
Sterile	Sterile by EO gas , non-toxic , non-pyrogen
Sample	Free
OEM	Available
